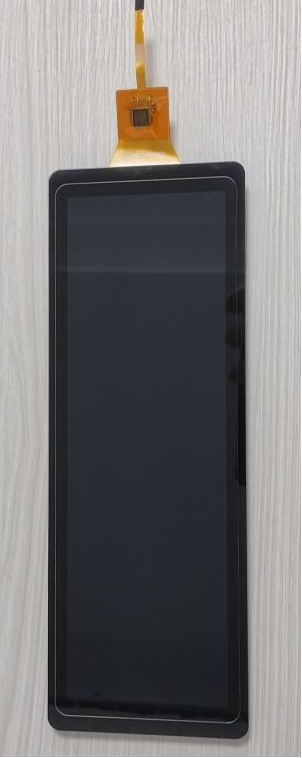

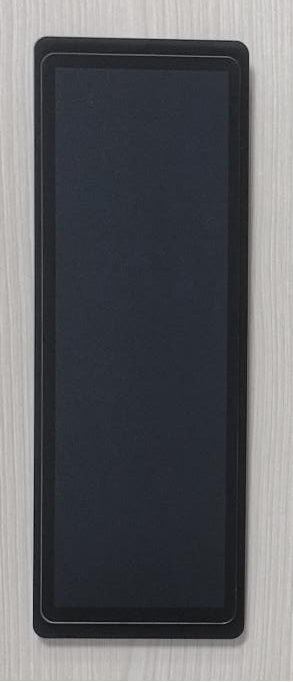

Double Cover Glass structure: 1.6mm CG + 1.1mm CG, with a total thickness of 2.0~3.0mm.
The double CG structure effectively defends against external force, achieving a protection rating of up to IK08, meeting the protection requirements of equipment in special fields. It offers excellent sealing, effectively preventing water ingress. The double CG can be matched with LCD displays of various sizes from 3.5 inches to 10.1 inches.
Freezing equipment, ice cream equipment, various outdoor equipment, mobile equipment.
Product Specifications
|
No. |
Item |
SpecificationFreezing equipment, ice cream equipment, various outdoor equipment, mobile equipment.
|
|
1 |
LCD size | 3.5~10.1inch |
|
2 |
Resolution | 320*480 \ 400 *1280 \ 800*1280 |
|
3 |
Display mode | Normally Black |
|
4 |
Pixel arrangement | RGB-stripe |
|
5 |
View Direction | FULL VIEW |
|
6 |
Interface | RGB\ MIPI\ LVDS |
|
7 |
Brightness | 250~500cd/m2(typ) |
|
8 |
With or Without Touch Panel | With |
|
9 |
TP Structure | GG+FF |
|
10 |
Cover Glass | 1.1mm \1.5mm \2.0mm \3.0mm |
|
11 |
Transmittance | ≥85% |
|
12 |
Surface hardness | ≥6H |
|
13 |
Operating Temperature | -20ºC～70ºC |
|
14 |
Storage Temperature | -30ºC～80ºC |
