AD boards are widely used in various applications. Taking the DS-25TEL-V1 as an example:

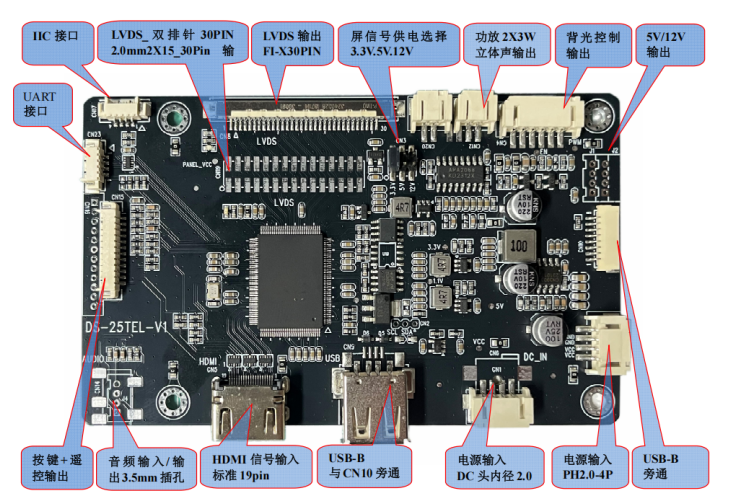

The DS-25TEL-V1 LCD Driver Board** is designed for TFT-type LVDS interface LCD panels, suitable for liquid crystal displays and other flat panel displays.
Input Signal Type: HDMI (Digital High-Definition)
Voltage Input: Wide range 8V–24V; Typical 12V (When panel supply is 12V, board input must be 12V)
Operating Temperature: -20°C to +70°C
Backlight Control:
- PWM duty cycle brightness adjustment
- Burn-in mode support
Display Output Interfaces: LVDS Single 6-bit, Single 8-bit, Dual 6-bit, Dual 8-bit
Compatibility:
Supports VESA-standard resolutions (480×272, DVI, SDVI, XGA, SXGA, WXGA+, UXGA, 1920×1200, etc.) via HDMI from Windows/Linux/Android PCs and graphics cards.
**Special Modes:**
- Self-test mode
- Burn-in mode
- Shortcut: Menu + Left keys for quick self-test activation
Features: Simple operation and highly reliable performance.
Customization is available per client requirements. Please provide the following details:
1. Physical Dimensions
2. Input Voltage (Specify V)
3. Interfaces:
Input Interface & Output Interface (e.g., EDP, MIPI, LVDS)
4. Functional Requirements:
- Display specifications
- Touch functionality
- Light sensor
- Required TP (Touch Panel) transmittance (%)
5. Application Scenarios
(Any other specific requirements may also be specified.)
